If your team is evaluating an AI voice agent with CRM integration, you likely want outcomes beyond a flashy demo. You want higher connect rates, fewer manual updates, and workflows that run themselves after every call. This guide shows how to design the architecture, connect to your CRM, automate bookings and qualification, and trigger downstream systems using APIs and webhooks. You will also find patterns for human handoffs, monitoring, and security so your voice AI scales with confidence rather than surprises.
AI Voice Agent with CRM Integration: Core Architecture

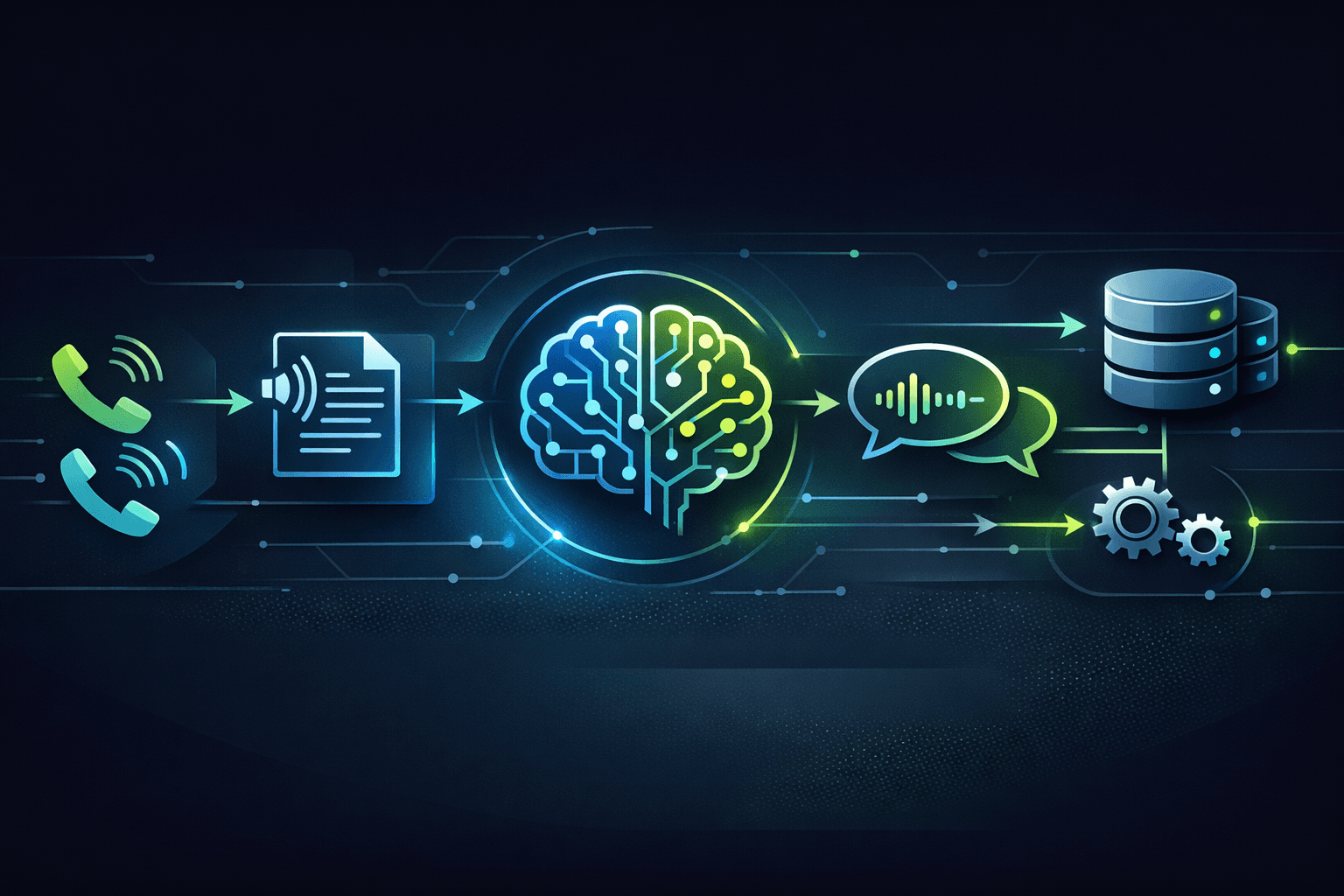

A robust voice AI stack typically follows a simple but strict loop: telephony to speech-to-text, reasoning to actions, and text-to-speech back to the caller. Calls land via SIP or an AI calling API, are streamed to an STT service, and partial transcripts feed a conversation brain (usually an LLM configured with tools). The agent decides what to say next, what data to fetch, and what to write back to the CRM. The reply is synthesized to audio and streamed to the caller with low latency. Around this loop, you need state storage, an event bus, and a job worker for reliable side effects.
State tracks who the caller is, why they called, and what has already been said. The event bus records each turn as an event stream for auditing and analytics. A worker executes non-voice actions, such as CRM upserts, email follow-ups, and calendar bookings, without blocking the live call. This separation keeps the voice loop fast while ensuring reliability for tasks that can complete a few seconds later. It also simplifies backoff and retries when external APIs are slow or rate-limited.
Real-time versus batch processing
The voice path must be real-time, but many updates can be batched. Keep the hot path focused on responsive conversation: streaming STT, compact prompts, short TTS chunks, and prompt caching. Offload non-urgent writes to the worker. For example, confirm a meeting live, then have the worker add notes, score the lead, and attach a summary a moment later. This approach improves perceived latency while still providing complete records in your CRM and data warehouse.
Speech-to-Text, LLMs, and Text-to-Speech
For speech-to-text, streaming recognition with partial hypotheses makes the agent more responsive. Use voice activity detection to reduce empty turns, and tune punctuation for clarity in transcripts. Add domain vocabulary for product names and acronyms so the model hears your world, not a generic one. Diarization is less critical when you only have one agent voice, but channel separation for the caller and agent helps with analytics and redaction. Always set a max silence timeout to avoid trapped sessions.
For LLMs, use tools for deterministic actions: look up a contact, update a record, or book a slot. Provide a compact system message with role, tone, compliance notes, and what to do when you do not understand. Keep an explicit memory object with the caller’s state, but do not store sensitive data in prompts longer than needed. For text-to-speech, pick a natural voice, enable short audio chunks, and allow barge-in so the caller can interrupt. This combination keeps conversations crisp and avoids robotic pauses that break trust.
Designing Conversations, Intents, and Context
Start with a small set of intents that match real business outcomes: qualify a lead, book a meeting, answer a plan question, or collect a payment promise. Define required slots for each intent and keep prompts strict about what the agent is allowed to do. Provide safe fallbacks: clarify, rephrase, or offer to text an article. Standardize confirmations for dates, amounts, and contact info with a final echo back to the caller. Use a compact conversation memory to track what is known, what is missing, and what was confirmed. This structure keeps the LLM consistent as calls vary in noise and pace.
Typical lead qualification fields
- Full name and best callback number, confirmed verbally.
- Company size range and role of the caller or contact.
- Primary need or use case stated in the caller’s words.
- Budget and decision timeline, even if approximate.
- Consent for follow-up by email or SMS when relevant.
Connecting Voice Agents to CRM Systems
Choose between vendor connectors and direct API integrations based on control and speed. For direct APIs, define OAuth or service accounts, required scopes, and per-object rate limits. Implement a dedup strategy using email, phone, and company to avoid polluting the database with near-matches. Every write should be idempotent: send an external idempotency key and check for existing records before creating new ones. Keep CRM timeouts and retries out of the live call path by dispatching writes to the worker tier.
Standardize on a minimal contact schema and map CRM-specific fields cleanly. For example, update lead status, last contacted date, source, and a short call summary. Attach a transcript link when available and tag the record with your voice AI source. Store the conversation state in your system, not the CRM, but write essential outcomes so sales and support can work in their usual views. This balance keeps the CRM useful while your agent maintains its own fast state machine for live reasoning.
Data mapping and sync modes
Use upsert patterns with stable external IDs. For bi-directional sync, subscribe to CRM change events and reconcile with event timestamps or eTags. When you hit rate limits, back off with jitter and prioritize writes that affect scheduling or next steps. Stream low-priority notes later. This keeps records fresh without throttling the agent’s ability to move a conversation forward or book time with a human rep.
Automating Appointment Bookings and Lead Qualification
For bookings, integrate with your calendar provider or scheduling API through a dedicated tool. The tool receives constraints such as meeting length, buffer time, host availability, and time zones. The agent proposes two or three slots, confirms the final choice verbally, and triggers a worker to send calendar invites and reminders. If calendars are private, allow the worker to request a temporary hold window before the agent confirms. Always read back the date and time slowly to reduce reschedules caused by mishearing or accent differences.
Lead qualification can mix rules and model judgement. Start with hard rules for disqualifiers and required signals, then add an LLM summary to classify intent as low, medium, or high. Store the agent’s confidence and the evidence phrases that influenced the score. High-intent leads can be routed to instant booking or immediate human pickup. Lower-intent leads receive follow-ups, nurture sequences, or knowledge base links via SMS or email as part of AI voice automation across your stack.
Triggering Workflows with Webhooks and APIs
Voice agents are most useful when they start automated business workflows. Use an internal event name for each outcome, such as call.completed, booking.confirmed, or payment.promise. A webhook dispatcher signs requests, retries on network errors, and guarantees ordering per call. The receiving service enqueues work and calls the right APIs: CRM updates, ticket creation, email sends, or even warehouse tasks. This is where voice AI workflow automation turns one phone call into many consistent follow-ups without manual effort.
- Define clear event contracts with versioned schemas and example payloads.
- Sign webhooks and validate signatures before processing requests.
- Use idempotency keys so retries never duplicate side effects.
- Fan out to downstream APIs using a job queue with backoff rules.
- Record outcomes and latencies to support audits and tuning.
Ordering, retries, and idempotency details
Guarantee per-call ordering by keying queues on call_id or conversation_id. Apply exponential backoff with jitter for transient failures and define dead-letter queues for manual review. Use the same idempotency key for the entire booking workflow, but different keys for independent side effects like email sends. Consistency beats cleverness here: a repeatable pipeline saves engineering time and avoids confusing duplicates in the CRM or calendar.
Connecting Voice AI with Existing Business Software
Beyond the CRM, meaningful AI phone agent integration touches ticketing, billing, inventory, and analytics. Let the agent open a support ticket with a succinct summary and severity tag. For billing questions, it can authenticate, check account status through a read-only API, and schedule a follow-up if human approval is required. For inventory, it can quote availability and lead times without disclosing internal details. Each integration should be a tool with strict inputs and expected outputs to keep the agent predictable and safe under load.
Human Handoffs, Error Handling, and Monitoring
Plan handoffs from day one. The agent should detect confusion, sensitive topics, or long silences and offer to bring a human on the line. Use a warm transfer via SIP refer or bridge and pass a concise call context so the human does not start from zero. If no one is available, offer to book a call or send a link. Keep the caller informed with short, clear phrases while transitions happen in the background. Every graceful exit improves trust and reduces escalations to email back-and-forth later.
Errors happen: network timeouts, STT hiccups, or CRM outages. Classify failures as transient or terminal and respond accordingly. For transient issues, apologize, retry once, and move on. For terminal ones, capture the outcome, file a task for a human follow-up, and text or email the caller with next steps if appropriate. Monitor latencies across STT, LLM, TTS, and third-party APIs to spot bottlenecks. Alert on abandonment spikes, long silences, and unexpected fallbacks so you can fix problems before they hurt revenue.
Observability essentials
Collect structured logs per turn, redacted transcripts, and a compact JSON state for each call. Store audio snippets when policy allows and tag them with intent outcomes. Track cost by call segment to guide prompt and model choices. Create dashboards for containment rate, booking conversion, first response latency, and tool error rates. This makes it straightforward to test a change, see its impact, and roll back if needed before users notice a dip in quality.
Security, Privacy, and Deployment Considerations
Handle personal data with care. Minimize what you collect, redact sensitive terms in transcripts, and encrypt data in transit and at rest. Rotate keys, restrict access by role, and log every administrative action. Give callers a clear notice that they are speaking with an AI assistant and how their data will be used. Respect local consent laws for call recording and SMS follow-ups, and disable recording in regions where it is not allowed without explicit consent.
For deployment, choose regions close to callers to cut audio latency. Benchmark different STT, LLM, and TTS providers in your use case rather than relying on generic claims. Ensure you have provider failover or at least graceful degradation paths. Capacity plan for concurrency spikes driven by campaigns. Keep model prompts and tool specs versioned so you can revert a change that increases error rates. This discipline keeps your AI phone agent integration productive as traffic grows.
Testing, QA, and Success Metrics
Create a test harness that replays real audio scenarios: accents, cross-talk, background noise, and fast speakers. Include scripted checks for slot capture, confirmation phrasing, and tool outputs. Measure containment rate, average handling time, booking conversion, qualified pipeline created, and support resolution speed. Review a weekly sample of transcripts for quality and compliance. Tie improvements to business KPIs so teams see progress, not just model scores. Continuous QA beats large occasional overhauls because it catches drift early and keeps customers happy.
Conclusion: Building an AI Voice Agent with CRM Integration
A production-ready AI voice agent with CRM integration is more than a chatbot that talks. It is a real-time system for gathering context, taking actions, and kicking off automated business workflows across your tools. Start with a clean architecture, a small set of intents, and reliable APIs for booking, scoring, and updates. Add human handoffs, strong monitoring, and privacy by design. If you want a practical build plan for your stack, Protodev can help you choose providers, wire up integrations, and ship faster with fewer surprises.
